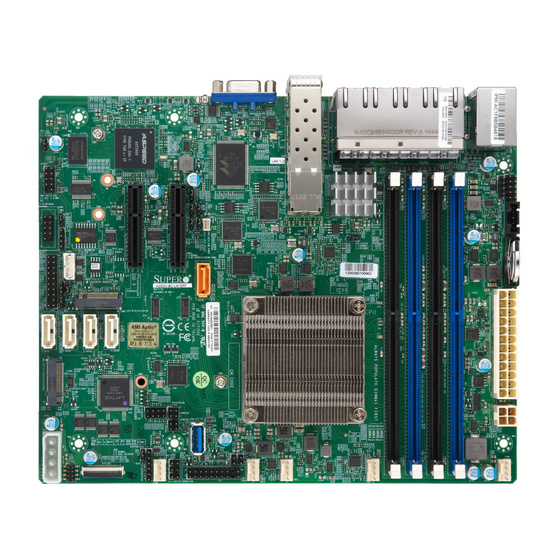

Supermicro A2SDV-8C-LN10PF max. 256GB 2xM.2 8xGbE 2x1G SFP+ IPMI w/ Intel Atom C3758 16MB / 8x 2.2GHz / 8T / 25W

Artikelnummer: MBD-A2SDV-8C-LN10PF-B

539,00 €

exkl. 16% USt. , plus Versand

Lieferzeit: 11 - 12 Werktage

System-on-Chip
Intel Atom Processor C3758 (8x 2.2GHz / 8 Threads / 2.2GHz TB / 16MB Cache / 25W TDP)
Up to 256GB Reg. ECC RDIMM - 64GB Unbuff. ECC/Non-ECC UDIMM - DDR4-2400MHz / 4x DIMM slots
1x PCI-E 3.0 x4 (Slot 6 or 7 option)
2x 1G SFP+ LAN with Intel I210-IS / 8x GbE LAN with Intel I350-AM4 + SoC
Intel Quick Assist Technology
5x SATA3 (6Gbps) ports via SoC
1x VGA / 1x COM (header) / 1x TPM Header
3x USB 3.0 (2x rear, 1x Type A) / 2x USB 2.0 (header)
1x M.2 PCI-E 3.0 x2/SATA / M-Key / Form Factor: 2242/2280
1x M.2 PCI-E 3.0 x2/SATA/USB / B-Key / Form Factor: 3042/2280
Supports 12V DC Power Input

CPU-Kühlung:	passiv
Leistungsaufnahme CPU (TDP):	25W - 55W
M.2 \| U.2 Ports:	2x M.2 Slots
Operating Temperature:	0°C ~ 60°C
CPU-Cores:	8-Core SoC
RAM Expansion (max.):	256GB
Mainboard Formfactor:	Flex ATX
LAN-Ports:	8 x GbE RJ-45 2 x 1G SFP+
Features:	w/ IPMI integrated w/ Intel QuickAssist
